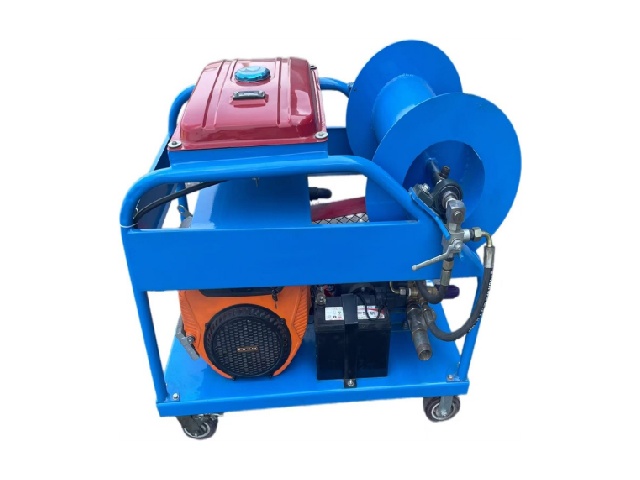

JMT-1-180BAR Gasoline Engine Sewer Drain Cleaning Machine
| 모델 | JMT-1 |
| 배출구 압력 | 180bar/2600psi |
| 물 유량 | 55L/min |
| 플런저 직경 | 28mm |
| 플런저 개수 | 3 |
| 입력 속도 | 3600r/min |
| Pump Speed | 1450r/min |
| 플런저 스트로크 | 21mm |
| Gasoline Engine Power | 27HP |
| 윤활 방법 | Splash Lubrication |
| Water Inlet Size | 1.5-inch |
Working Principles
The high-pressure pump generates a high-pressure water jet. Connect the pipe unclogging nozzle to the pump via a high-pressure hose and place the nozzle directly inside the pipe to be unblocked.
As the high-pressure pump operates, the reaction force generated by the high-pressure water ejected from the rear of the nozzle rapidly pushes the nozzle forward. High-pressure water jets generated by the nozzle’s front and rear nozzle holes quickly clean the pipe.
As the pipe collector pulls the nozzle back, the high-pressure water flow flushes dirt out of the pipe bundle.
Applications: Used for unclogging and clearing clogged pipes in municipal, residential, and industrial parks.
제품 특징 및 장점
1. 첨단 기술, 컴팩트한 구조, 부드럽고 안정적인 전송.
2. 안정적이고 신뢰할 수 있는 압력, 쉬운 조정.
3. 스테인리스 스틸, 충격에 강한 실리콘 오일, 압력 표시.
4. Forced lubrication on the power end reduces friction and improves lubricity, ensuring smooth and reliable transmission.
5. 견고하고 내구성이 뛰어난 단조 스테인리스 스틸 펌프 헤드.
6. 동기식 커플링으로 안정적인 작동을 보장합니다.
7. 연성 철로 제작된 고압 펌프 하우징으로 열 방출이 우수하고 질감이 단단하며 변형에 강합니다.
8. The equipment is equipped with a filter to precisely filter impurities in the incoming water, which is beneficial to extending the service life of the water pump
9. Available with either electric motor or diesel engine drive.
Applications Industry
1. Multi-application cleaning, including residential property pipe cleaning.
2. Multi-application cleaning, including municipal pipe cleaning and unclogging.
3. Multi-application cleaning, including diversion tunnel pipe cleaning.
4. Multi-application cleaning, including tunnel and culvert pipe cleaning.
5. Hull cleaning, deck cleaning, decontamination, and marine growth removal from ship bottoms.
6. Metallurgical equipment and metallurgical atomization.
7. Machinery manufacturing plants, including vessel/pipeline/rust/scale cleaning.
8. Cement plant pipe cleaning, removing grease and dirt from equipment surfaces.
9. 채굴 유압 지지대 세척, 재제조 등 9.
자세한 제품 사양
| 모델 | Flow（m³/h） | Rated Flow Rate(l/min) | 정격 압력(바) | Power （kw） | Diesel Engine Power（kw） | Gasoline Engine Power（HP） |
| JMT-1 | 3.3 | 55 | 180 | 15KW | 28HP | 27HP |
| Jmt-2 | 4.8 | 80 | 180 | 22kw | 33KW | 37HP |
| JMT-2 | 7.2 | 135 | 180 | 37kw | 62kw | |
| JMT-2 | 10.2 | 170 | 280 | 90kw | 145w | |
| JMT-2 | 12.9 | 215 | 220 | 90kw | 145kw | |
| JMT-2 | 15 | 250 | 200 | 90kw | 145kw | |
| JMT-7 | 21 | 350 | 300 | 200kw | 264kw | |
| JMT-7 | 28.8 | 480 | 200 | 200kw | 264kw |
적용 사례
Cement pipe cleaning
Sewer pipe cleaning
Square trench cleaning
