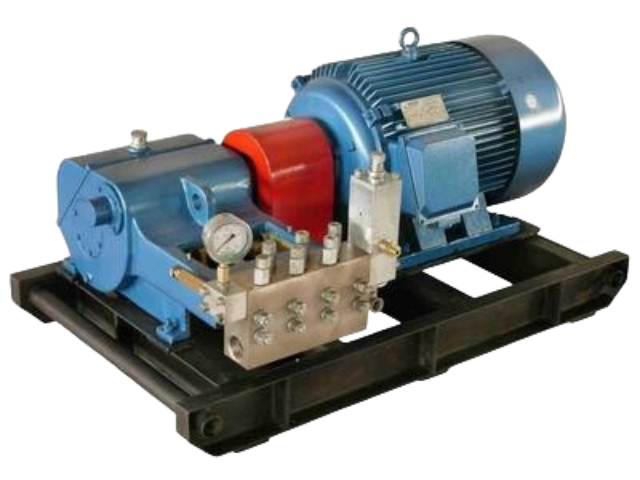

JMT-2 Series Motor Driven Pressure Test Pump
| Model | JMT-2 |
| Outlet Pressure | 220bar/3190psi |
| Water Flow Rate | 215L/min |
Applications: This device can be used for hydraulic pressure testing, strength testing, and hydraulic burst testing of oil pipelines, natural gas pipelines, industrial pipelines, pressure vessels, valves, boilers, cylinders, firefighting equipment, and petroleum tools. It can perform functions such as segmented pressure testing, pressure maintenance, automatic remote unloading when shut down, and pressure curve display.
Product Features and Advantages
1. Advanced technology, compact structure, and smooth and reliable transmission.
2. Stable and reliable pressure, easy adjustment.
3. Stainless steel, shock-resistant silicone oil, and pressure display.
4. The power end adopts forced lubrication to reduce the friction coefficient and improve lubricity, making the transmission smooth and reliable.
5. Forged stainless steel pump head, sturdy and durable.
6. Synchronous coupling ensures stable operation.
7. High-pressure pump housing made of ductile iron; excellent heat dissipation, hard texture, and resistant to deformation.
8. The equipment is equipped with a filter to precisely filter impurities in the incoming water, which is beneficial to extending the service life of the water pump.
9. Forced water cooling system on the hydraulic end reduces plunger temperature.
10. Available with either electric motor or diesel engine drive.
Detailed Product Specification
| Model | JMT-7 |
| Outlet Pressure | 200bar/2900psi |
| Water Flow Rate | 215L/min |
| Plunger Diameter | 50mm |
| Number of Plungers | 3 |
| Input Speed | 1480r/min |
| Pump Speed | 405r/min |
| Plunger Stroke | 95mm |
| Engine Power | 90kw |
| Lubrication Method | Forced Lubrication |
| Water Inlet Size | G 2-inch |
Can be customized according to customer requirements.

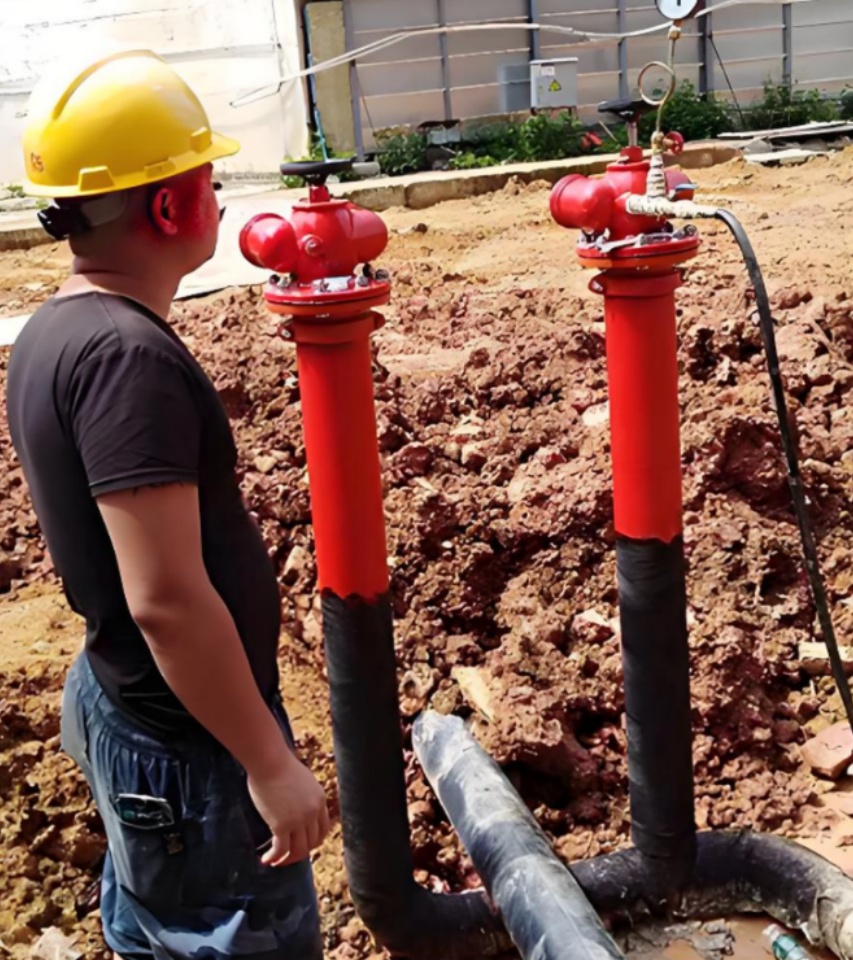

Application Cases

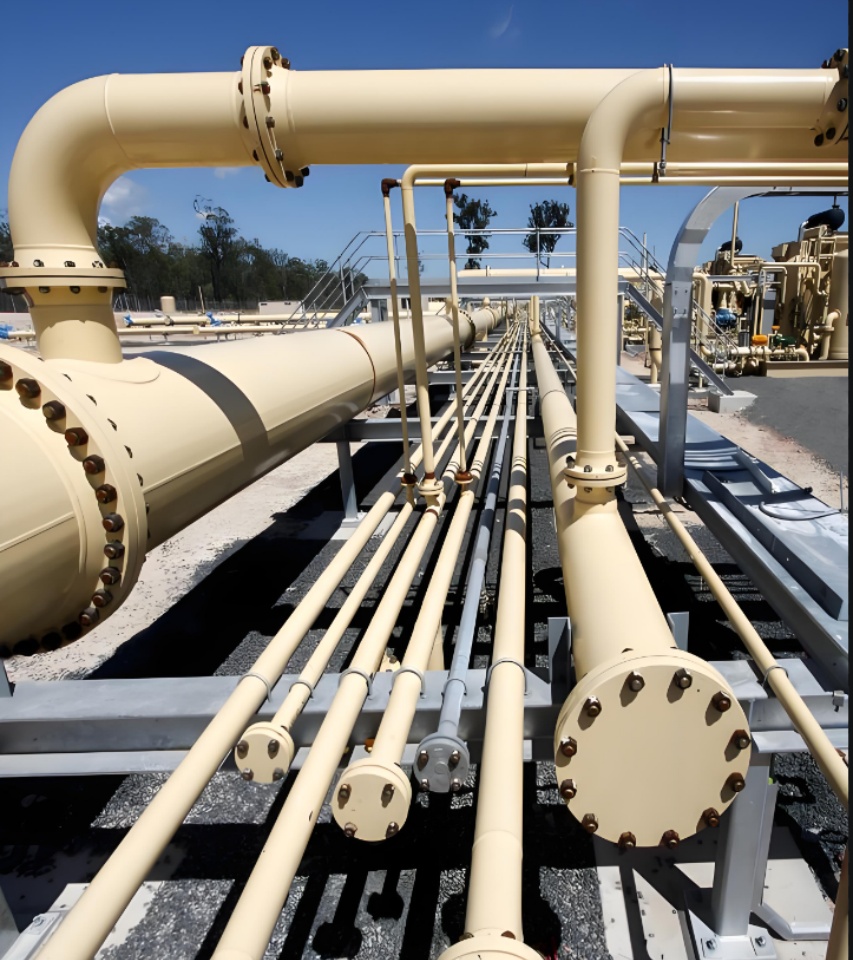

Large industrial pipeline pressure testing
Oilfield pipeline pressure testing
Natural gas pipeline pressure testing
JMT Series Technical Parameters
| Model | Power（kw） | Rated Flow Rate | Rated Pressure (Bar) |
| JMT-1 | 5.5kw-22kw | 15L-80L | 50bar-500bar |
| JMT-2 | 22kw-90kw | 50L-250L | 50bar-500bar |
| JMT-2A | 3KW-550kw | 5L-2200L | 50Bar-7500bar |
| JMT-3 | 75kw-110kw | 40L-120L | 600bar-1000bar |
| JMT-5 | 90kw-160kw | 40L-138L | 500bar-1500bar |
| JMT-6 | 160kw-250kw | 60L-200L | 1500bar-3000bar |
| JMT-7 | 110kw-200kw | 195L-500L | 50bar-500bar |
| JMT-8 | 160kw-250kw | 127L-638L | 200bar-100bar |
Can be customized according to customer requirements.
